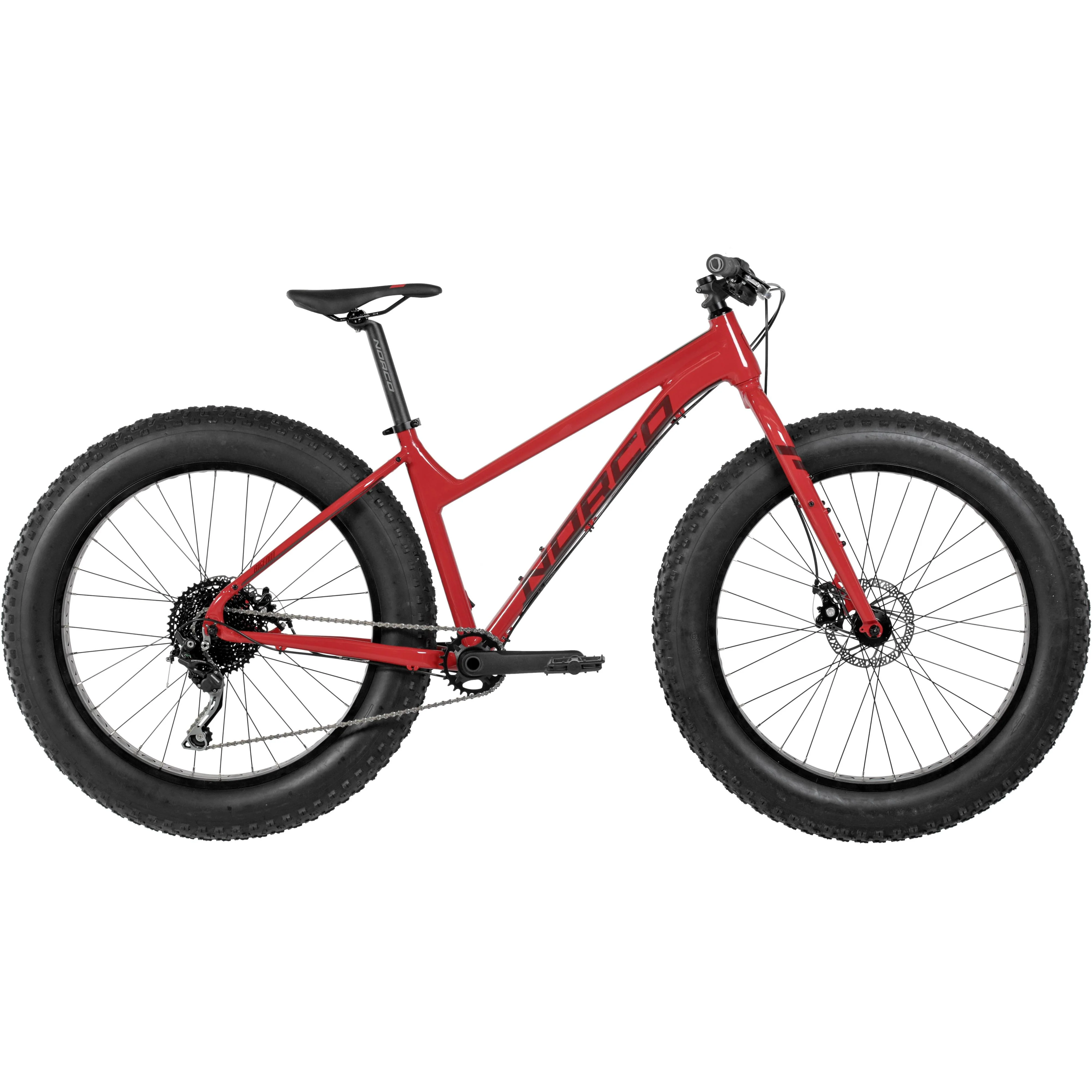

Norco Bigfoot 2 CV Fat Bike (2018)
With its lightweight, double-butted X6 6061 aluminum frame, disc brakes and clearance for up to 5.0ā tires, the Bigfoot stands for cycling versatility in any terrain and season. From snow lines to sand rides, the Bigfoot provides incredible traction and control and proves that thereās no off-season for fat bikes.
Our GIZMO internal cable routing system keeps out water and debris, prevents any rattling, and allows for easy setup and maintenance.
NORCO BIGFOOT ALUMINUM FRAME:
New X6 6061 double-butted aluminum frame is now 175g and features stealth dropper post routing.
CLEARANCE FOR UP TO 5.0ā TIRE:
Compatible with 26x5.0ā or 27.5 x 4.0ā tires for incredible traction and flotation through snow, sand, and other variable terrain.
ALLOY FAT FORKS:
Lightweight, tough and with tire clearance for up to a 26 x 5.0ā tire.
MECHANICAL OR HYDRAULIC DISC BRAKES:
Deliver superior stopping power and utilize DOT fluid which wonāt freeze up like mineral oil used in other brake systems.
1X11 AND 1X10 GEARING:
Low gearing for riding through snow or sand, while helping to counteract increased rolling resistance of larger tires.
Specifications
- 01.FRAME Norco 6061 X6 Alloy Bigfoot Fat Frame
- 02.FORK Norco 6061 Alloy Fat Fork
- 03.REAR SHOCK -
- 04.HEADSET Angular Sealed Cartridge Bearings - Tapered
- 05.HEADSET SPACER 2x10mm - Black
- 06.GRIPS Norco Grip
- 07.HANDLE BAR X6 Alloy 750mm x 31.8
- 08.STEM Alloy 60mm x 31.8
- 09.SEAT POST Norco Alloy 31.6
- 10.SEAT POST CLAMP Norco Alloy QR
- 11.SADDLE Norco XC Saddle
- 12.FRONT BRAKE Tektro MD-280 160mm Mech Disc
- 13.REAR BRAKE Tektro MD-280 160mm Mech Disc
- 14.BRAKE LEVERS Tektro Alloy
- 15.SHIFTER FRONT N/A
- 16.SHIFTER REAR Shimano Deore SL-M6000 10spd
- 17.FRONT DERAILLEUR N/A
- 18.REAR DERAILLEUR Shimano Deore M6000 Shadow Plus 10spd
- 19.CASSETTE Sunrace CSMS2 10sp 11/42 Cassette
- 20.CHAIN KMC X10 10spd
- 21.CRANKSET Samox 28T Alloy Crank
- 22.BOTTOM BRACKET External Threaded
- 23.CHAIN TENSIONER -
- 24.PEDALS VP Nylon Flat Pedal
- 25.FRONT HUB Joytech Alloy 135mm QR
- 26.FRONT HUB SKEWER Alloy QR
- 27.REAR HUB Joytech Alloy 190mm QR
- 28.REAR HUB SKEWER Alloy QR
- 29.SPOKES/NIPPLES Stainless Steel 14g - Black
- 30.RIMS Alloy SW 80mm 26" Fat Rim
- 31.FRONT TYRE CY H-5176 26" x 4.9" Fat Tire
- 32.REAR TYRE Same as Front
