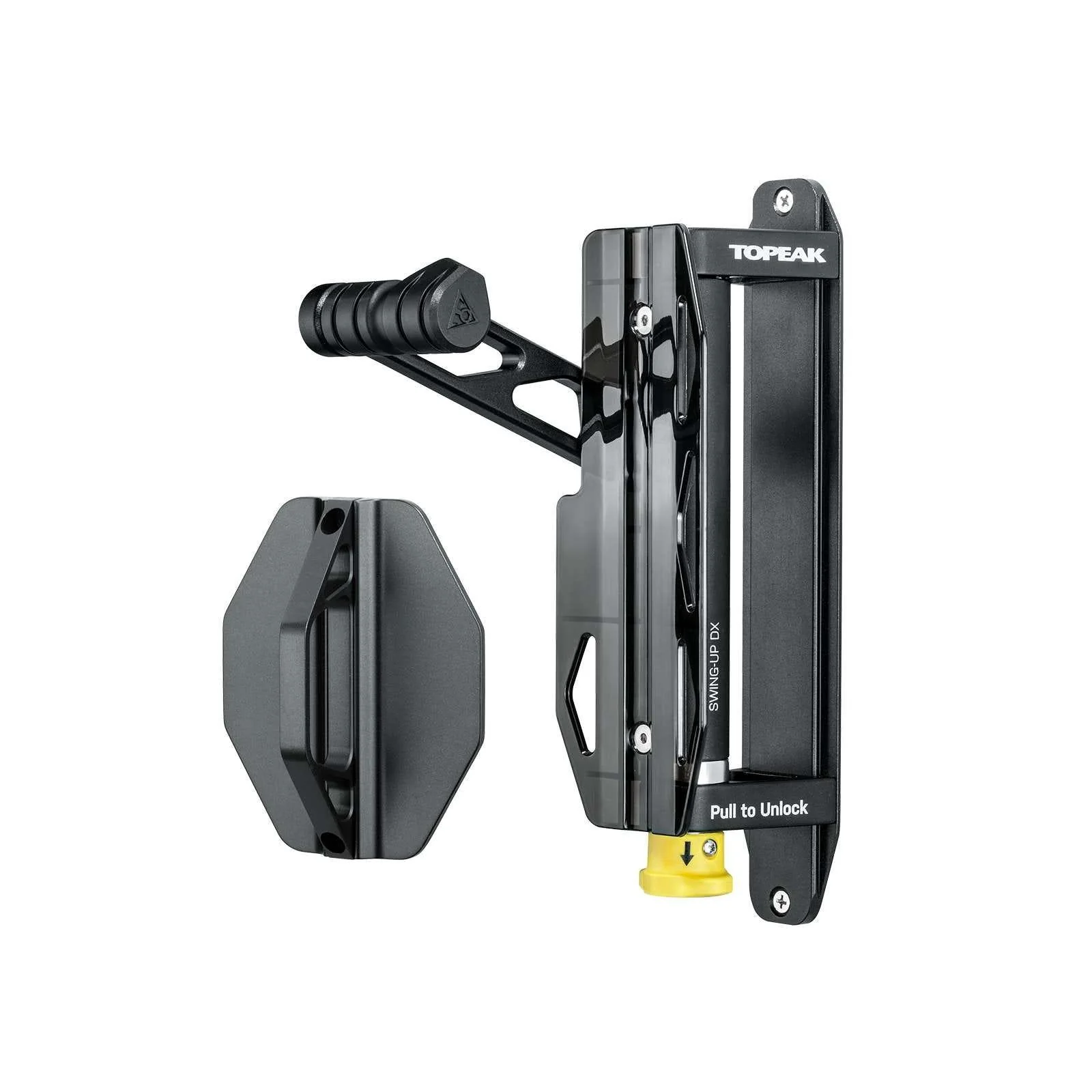

Topeak Swing Up DX Bike Holder

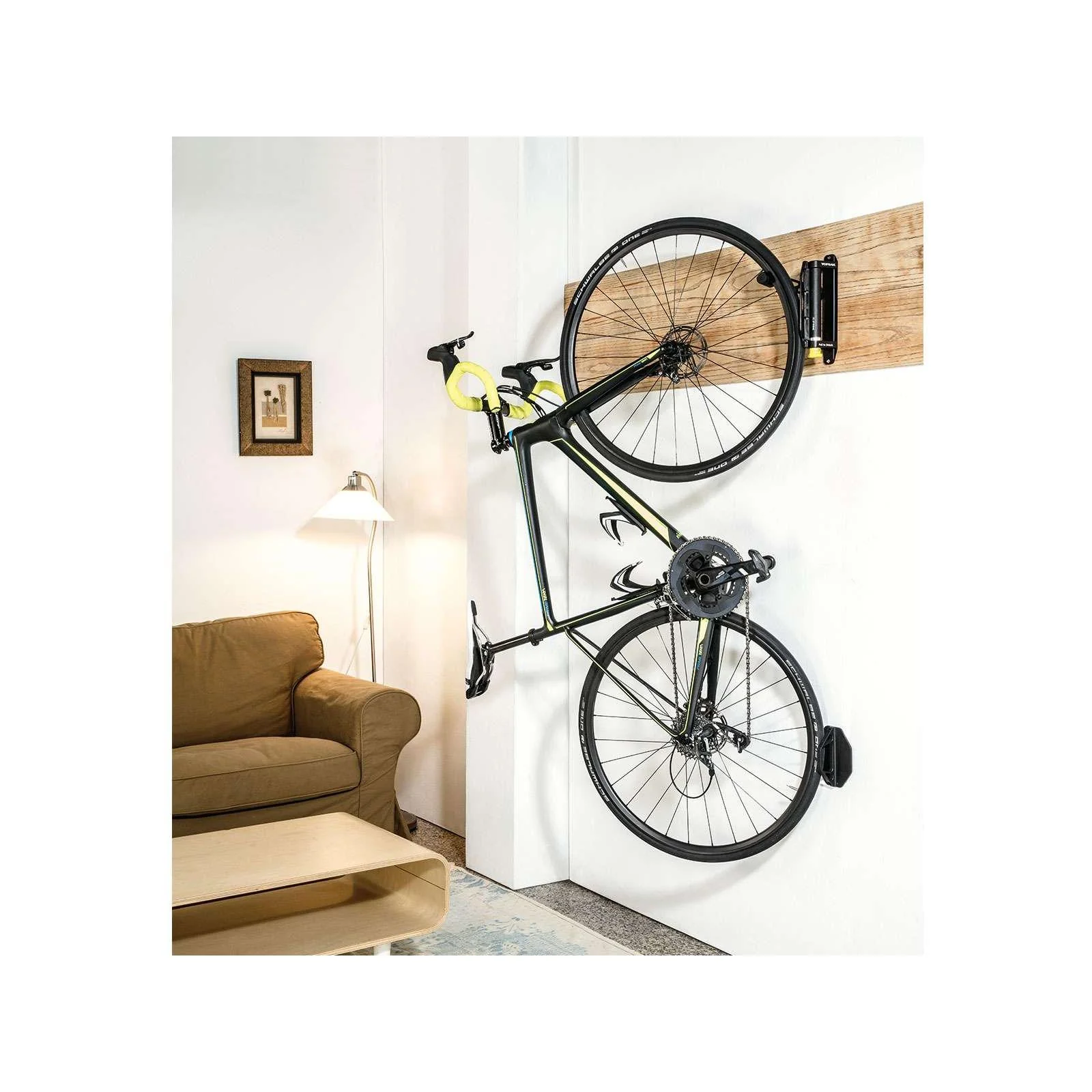

The Swing-Up DX allows you to swing your bike to either side and can also be locked down in 15 degree increments to optimize space usage. Compatible with wheel / tire combinations having an overall height of 3.15" (8cm) and tire width up to 2.35" (approx 6.6cm).

Features

• Swing left or right to optimize storage space
• Pull the adjusting nut to lock down angle in 15 degree increments
• Molded rubber bar keeps bike from twisting
• Molded wheel pads prevent tires from marking walls
• Overall height up to 8cm (3.15”) and tire width up to 2.35” (≑6.6cm)

Specifications

ATTACHMENTS	Wall mount
MATERIAL	Aluminum / steel / plastic
MAX WEIGHT CAPACITY	16 kg / 35 lb
ADDED FEATURES	Rotatable Front Wheel Fixed Bar  Angle lock down in 15 degree increments
COMPATIBILITY	Compatible with wheel/tire combinations having an overall height up to 8cm (3.15”) and tire width up to 2.35”
SIZE	29.3 x 16 x 7.7 cm / 11.5” x 6.3” x 3”
WEIGHT	910 g / 2.01 lb
